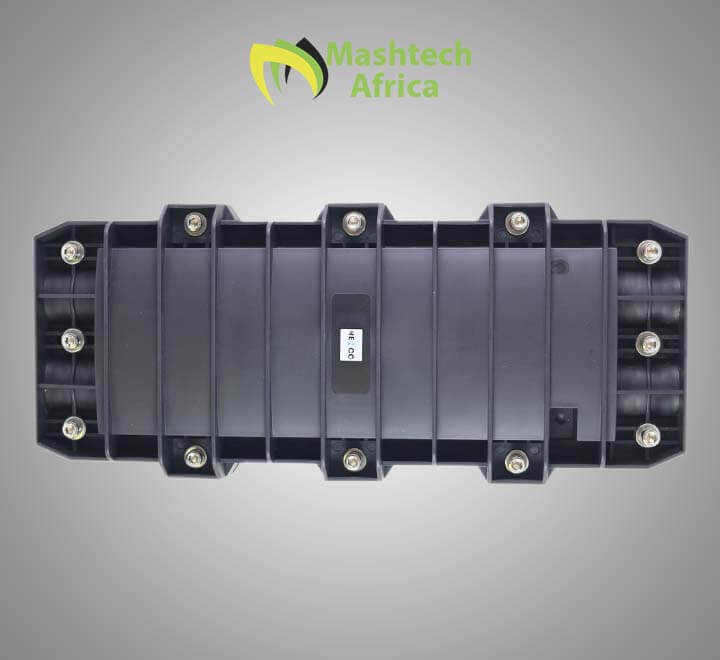

24 Core Fiber Enclosures Horizontal

Fibre Optics
Availability:

7 in stock


  • Provides a perfect solution for protecting fibre splices from the permeation of water.
  • Used for underground, aerial, building entrance, pedestal and direct buried applications.
  • Closure can accommodate up to 96 cores, which can cover most of the applications in fiber distribution networks.
  • FOSC106 has Mechanical and Chemical resistance for all the application areas in fibre networks and is designed
  • Developed based on proven sealing technology.
  • Made of robust ABS parts and special silicon sealing materials.
  • The sealing of the closure is achieved by non oxidized special screws.
  • The closure kit includes all the necessary accessories–parts for complete closure installation including.

SKU: SPFC-NH

KSh 3,800.00

7 in stock

KSh 7,600.00 for 2 item(s)

Fibe Closure Horizontal Type 24 Cores Splice Tray 2 IN 2 OUT Mechenical

The product can be applied in the straight line and branch line(one into two, one into three connections of optical cables within the diameter of 22mm(φ), all types and structures, when laid overhead ,in the pipeline, underground or in the well. Meanwhile, it is also applied to the connection of all-plastic city phone cables.

Features

All property indexes are in accordance with National YD/T814-2004 Standard.

The case body is made from imported high-intensity engineering plastics(ABS) and formed the shape with mould plastics under high pressure. It is in the shape of HALF rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.

The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) and sealed tape. Reliable sealing capability. It can be re-opened and easy to maintain.

Unique disposition of 3 different cable loops(φ12.5,φ17,φ20) enables user to choose different outer diameter according to actual conditions, It enhances the reliability of the cable entrance sealed.

Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.

Outer metal component and fixing unit are made of stainless steel, so can be repeatedly used in different environments.

Supplied with:

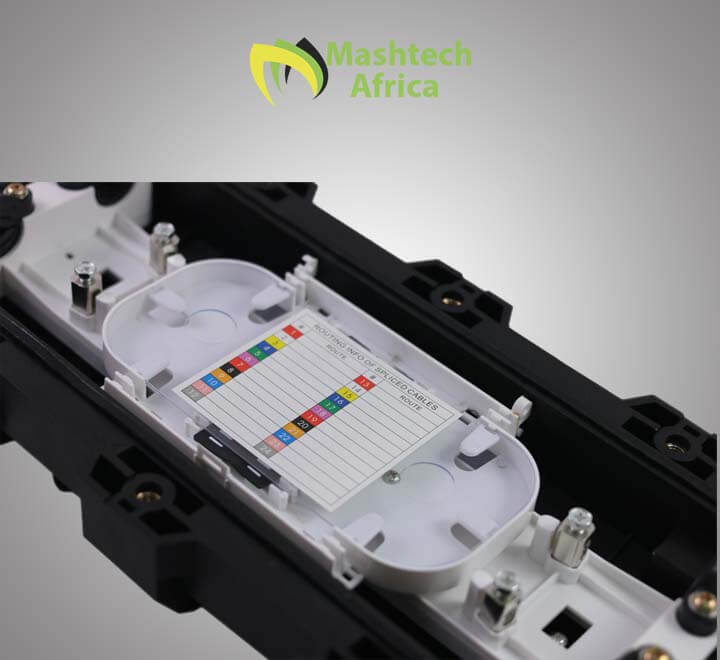

  • 1 x 24 fibre splice tray
  • 24 x 60mm splice protectors
  • 1 x 900mm Buffer tubing
  • 12 x cable ties
  • 4 x cable entry blank plugs
  • 1 x allen key
  • 1 x abrasive cloth
  • 1 x adhesive tape
  • 1 x cable entry sealing tape
  • Installation instructions
Brands

Fibre Optics

Specifications

 Item  Parameter
 Type  SPFC-NH-XXM-2/2C
 External Size  435(L)× 190 (W) × 120 (H) mm
 Net weight  2.8kg
 Cable ports  Two cable entry port on each end
 Way to install  Aerial, duct and buried applications
 Cable diameter  ∅10-∅22
 Capacity of splice tray  24 single fiber
 Max Capacity of Splice Tray  8
 Sealing structure  Sticky cincture
 Work Temperature  -40 °C ~+70 °C
 Optical fiber winding radius   ≥40mm
 Extra loss of fiber tray  ≤ 0.01dB
 Fiber length left in tray  ≥1.6m
 Max Capacity  Fiber capacity: single:96cores, tape-shaped: 192 cores
 Lateral pressure-resistance  ≥2000N / 10cm
 Shock-resistance  ≥20N.m





Dimensions



8 Splice Tray Fiber Optic Splice Enclosure , 24 Cores Fiber Splice Box 0

Appliations



● Telecommunication subscriber loop

● Fiber to the home(FTTH)

● LAN/WAN



Ordering Infomation



 Model  Description  Size  Package  Weight/carton
 SPFC-NH-24M-2/2C  Fiber Closure Horizontal type 24 Cores Max , 24 Cores Splice Tray 2 IN 2   OUT  Mechenical Splicing type C  435*190*120mm  515*425*575/8PCS  22.5KG/8pcs
 SPFC-NH-48M-2/2C  Fiber Closure Horizontal type 48 Cores Max , 24 Cores Splice Tray 2 IN 2   OUT  Mechenical Splicing type C  435*190*120mm  22.5KG/8pcs
 SPFC-NH-72M-2/2C  Fiber Closure Horizontal type 72 Cores Max , 24 Cores Splice Tray 2 IN 2   OUT  Mechenical Splicing type C  435*190*120mm  22.5KG/8pcs
 SPFC-NH-96M-2/2C  Fiber Closure Horizontal type 96 Cores Max , 24 Cores Splice Tray 2 IN 2   OUT  Mechenical Splicing type C  435*190*120mm  23.0KG/8pcs
 SPFC-NH-144M-2/2C  Fiber Closure Horizontal type 144 Cores Max , 24 Cores Splice Tray 2 IN 2   OUT Mechenical Splicing type C  435*190*120mm  23.0KG/8pcs
 SPFC-NH-192M-2/2C  Fiber Closure Horizontal type 192 Cores Max , 24 Cores Splice Tray 2 IN 2   OUT Mechenical Splicing type C  435*190*120mm  23.0KG/8pcs
