Fiber Optic Pigtail
ATB With SC/ APC and SC/ APC Simplex Pigtail
Availability:
7 in stock

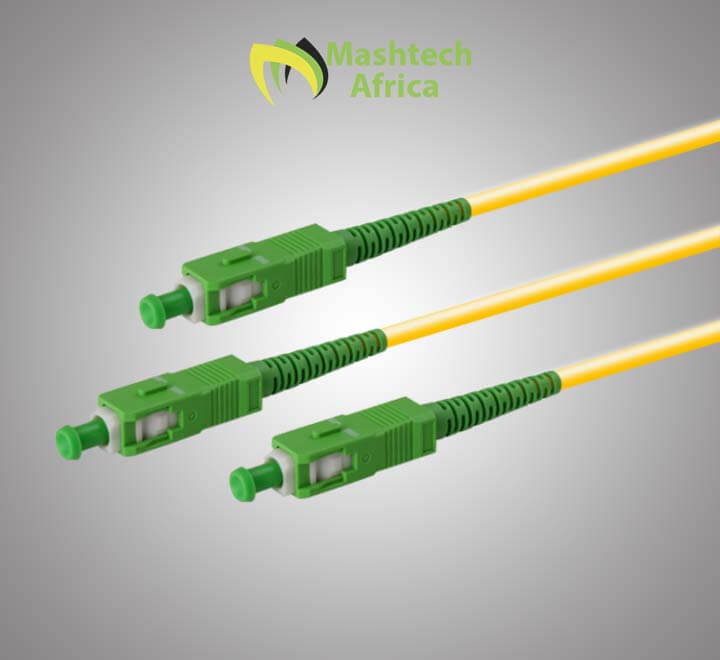

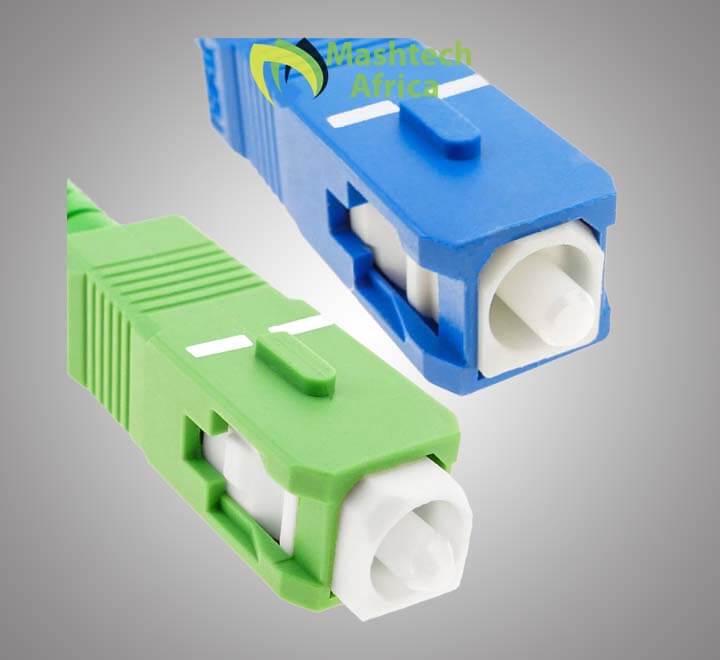

- SC-APC Singlemode Fiber Optic Pigtail Simplex 1M – Teleweaver
- SC-APC Singlemode Fiber Optic Pigtail is a connecting SC-APC connector with a single-mode fiber cable in the end.
- Normally Single-mode Fiber Optic Pigtail is simplex, but also has multi-core fiber, they are all available for Active device termination installations
- SC-APC single-mode fiber optic pigtails have different colors and meter numbers, 0.9/2.0/3.0mm wire diameter.
- We design, manufacture, and test our fiber optic pigtail according to protocol and performance under industry standards.
SKU: FO-SC-APC-SMP
$1.22 $1.82
7 in stock
Compare-
Fiber Optic Pigtail
ATB With SC/ APC and SC/ APC Simplex Pigtail
- SC-APC Singlemode Fiber Optic Pigtail Simplex 1M – Teleweaver
- SC-APC Singlemode Fiber Optic Pigtail is a connecting SC-APC connector with a single-mode fiber cable in the end.
- Normally Single-mode Fiber Optic Pigtail is simplex, but also has multi-core fiber, they are all available for Active device termination installations
- SC-APC single-mode fiber optic pigtails have different colors and meter numbers, 0.9/2.0/3.0mm wire diameter.
- We design, manufacture, and test our fiber optic pigtail according to protocol and performance under industry standards.
SKU: FO-SC-APC-SMP
SKU: FO-SC-APC-SMP
$4.07 for 2 item(s)
The Simplex SC/APC 9/125 Single-mode Fiber Optic Pigtails provide a fast way to make communication devices in the field. The Simplex SC/APC 9/125 Single-mode Fiber Optic Pigtail are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features
- Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS specifications
- Low insertion loss & back reflection
- One-piece construction & pull-proof design
- Free-floating ceramic ferrule
- Precision anti-rotation key and corrosion resistant body
- UL-rated plastic housing and boots in a variety of colors
- Telcordia style boots
- SC Adapters with choice of metal or plastic housing, mount styles & flange options
Application
- Optical Fiber Communications, Video, LAN, CATV Systems
- Installed into fiber optic patch panel or FTTH distribution box
- SC front panel with SC Pigtails
- Optical Network Equipment, Optical Test Equipments
- Module Pigtails, Multi-media, Premise
- Active device termination installations
| Brands | Fibre Optics |
|---|
Specification
| Connector Type | SC/APC Singlemode Fiber Optical Pigtail |
|---|---|
| Polishing Type | APC |
| Insertion Loss | SM <0.2dB |
| Return Loss | PC>50dB |
| Repeatability | SM <0.2dB |
| Exchangeability | SM <0.2dB |
| Tensile Strength | F200N |
| Durability | >=1000 |
| Operation Temperature (℃) | -40℃ ～+80℃ |
| Sleeves Material | Zirconia Ceramic |
| Cable Diameter (mm) | Ø0.9mm, Ø2.0mm, Ø3.0mm |
