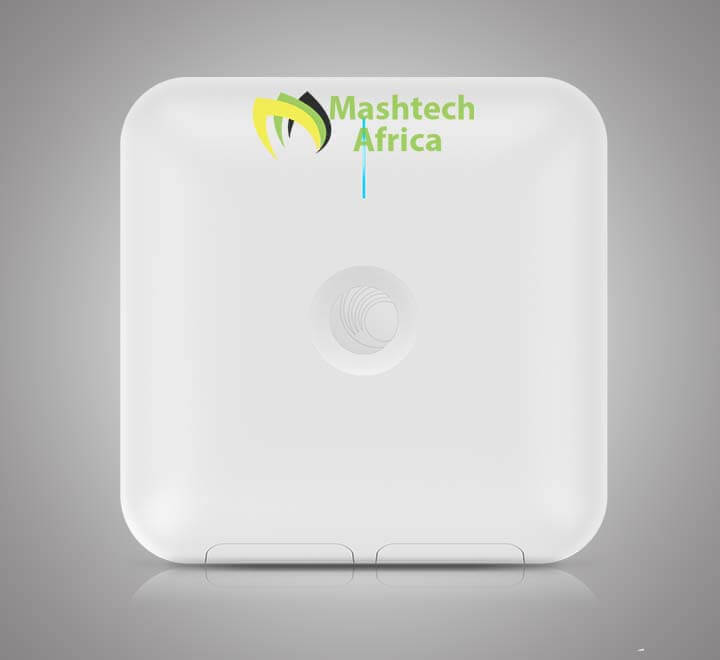

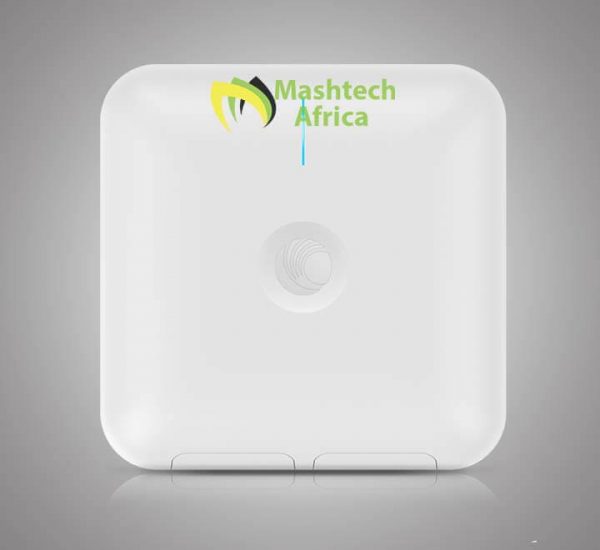

Cambium cnPilot E600 Enterprise Indoor Access Point

Cambium Networks
Availability:

6 in stock


  • Gigabit 802.11ac Wave 2 Dual-Band 4×4 Indoor Access Point
  • The High powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac wave 2 E600 access point with a 4×4 array antenna array implements the latest standards. Perfect for just about any place needing high capacity throughput, high range, and/or high client capacity. Ideal workhorse to take on high traffic demand in Classrooms (Schools), Indoor public spaces, Malls, Hotels, or Enterprise offices.
  • High-Performance Enterprise
    Affordable enterprise-grade high-density 802.11ac Wave 2 indoor access points for schools, indoor public spaces, malls, hotels and resorts, coffee shops, multi-dwelling units (MDUs), or just about any place indoors that needs reliable, high-performance indoor Wi-Fi.

SKU: PL-E600X00A-US

KSh 44,000.00 KSh 45,000.00

6 in stock

KSh 78,500.00 for 2 item(s)

Features:

A powerful business wireless internet solution targeted for small and medium-sized enterprises.

  • cnMaestro
    Cambium’s cnMaestro Cloud-based or on-premises controller offers zero-touch onboarding, inventory tracking, monitoring, easy configuration, dashboard views, and more.
  • Powerful simplicity
    No controller. No expensive licensing fees – just seamless controller-less roaming for up to 1,000 clients.
  • Monetize your Wi-Fi service
    Create fast guest access features with semi-customized splash pages, and time- and rate-limited access. Access options like social login and vouchers available with purchase are ideal for guest Wi-Fi in hotels, coffee shops, and offices.
  • Indoor/Outdoor Wi-Fi mesh for flexibility
    Customize and expand networks easily with wireless mesh that can integrate or cover multiples of both the indoor and outdoor modules.
  • High capacity coverage
    The plenum-rated with 256-user capacity and up to 16 SSIDs ensures network adaptability to the dynamics of growing demand, with advanced features like airtime fairness, Automatic Channel Scanning (ACS), and high client device speeds with band steering.
  • License-free affordable quality
    All cnPilot e-series AP sales include a free controller, no AP management license fees, and no hidden charges.

Controller Managed + Autonomous

Managed by Cambium’s cnMaestro cloud controller or On-premises controller, the cnPilot E600 management includes:

  • Zero-touch onboarding
  • Inventory tracking
  • Monitoring
  • Mass Configuration
  • Dashboard views with Alarms
  • Mass upgrade
  • Troubleshooting
  • Hierarchical device organization

Controller-Less Roaming. Powerful SImplicity

The E600 supports seamless roaming for up to 1,000 clients without needing a controller in the network! Hotspot portal hosting on the AP itself offers controller-less simplicity.

Monetize: Vouchers. Social Login

Monetize your Wi-Fi service: cnMaestro’s Guest access feature supports splash page hosting, social login, and payment gateway. All built-in power-packed features are available right on the controller! These features along with the ability to create time, rate, and volume limited traffic profiles along with vouchers for temporary guest access make the E600 ideal for Hotels, Coffee shops, Campgrounds, and Office guest Wi-Fi.

Service Aware WLANs. Better User Experience.

Nothing is more frustrating than connecting to an Access point, but not getting to the Internet! When connected to a critical resource such as an external Gateway or AAA is down, the E600 can turn off the impacted SSIDs enabling client devices to select a different working neighboring Access point.

Indoor/Outdoor Wi-Fi Mesh. Flexibility.

Indoor meshing across multiple E600s or Indoor/Outdoor meshing across the Indoor E600 and the Outdoor E500 offers a convenient way to easily expand Wi-Fi coverage without wires.

Coverage, Capacity. Speed.

The plenum-rated E600, packs a max transmit power of 28 dB, and is DFS certified to make use of additional reserved 5GHz DFS channels, offering more flexibility than ever for both coverage and capacity. Throughput management via Airtime fairness increased performance by Automatic channel scanning (ACS), and higher client device speeds from Band steering ensure your network can adapt to the dynamics of ever-changing client behaviors.

High Density, Highly Available

A capacity of 256 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the E600 combines high density with high availability.

License Free High Performance. One Low Price.

The 802.11ac wave 2 E600 comes with a free controller, and no AP management license fees. One of the most competitively priced 4×4 Access point.

Brands

Cambium Networks

Specifications:



cnPilot E600 Specifications
Access Point Specifications
Standards IEEE 802.11a/b/g/n/ac Wave 2
Others: 802.11 h/d/r/u/w/
MIMO Streams 2×2 (2.4 GHz) , 4×4 (5 GHz) MIMO streams
Range 250 m (800 Ft)
Concurrent Clients 512
Max Data Rates 3.85 Gbps (3,846 Mbps)
SSID 16 SSIDs across 2 radios
Antenna gain 4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz)
Multi-Hop Mesh Yes. Supported on Indoor & Outdoor access points.
Mesh auto-recovery supported
Polarization Dual-linear
Antenna Coverage Omni (360°)
USB Yes
Bluetooth radio Yes. BLE
Ethernet Ports Two (2) x 1 Gigabit Ethernet (10/100/1000 Mbps)
12 V DC Input Yes
Frequency bands 2.4 GHz: 2400-2484 MHz
5 GHz: 5150-5850 MHz with DFS band support
Power Supply (Multiple choices) Standard 802.3at injector (supplied), 802.3at PSE, 802.3af PSE (limited performance), 12V dc adapter (accessory or PoE switch)
Power Consumed 22 W (max)
Dimensions 180x180x42mm (or 18x18x4.2cm)
Weight 400 g
Temperature 0°C to +50°C
LED Single LED window with tri color (Amber, Blue, Green) display
Max TX Power 22 dBm
Physical Lock Kensington key hole
Wi-Fi Features
Controller modes
  • Autonomous Controller-less operations (E.g.: roaming)
  • Cloud Managed
  • On-premise virtualized controller
Secure WLAN
  • WPA-TKIP, WPA2 AES, 802.1x
  • 802.11w (Protected Management Frames)
Hotspot 2.0/Passpoint Yes
Captive Portal/ Guest Access
  • cnMaestro Controller
  • Stand-alone AP based
  • Redirection to external RADIUS Server
  • Active Directory Integration
Authentication
  • Secure Web page, RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS
  • MAC authentication (local database or External RADIUS server)
Accounting Yes. Supports RADIUS based accounting to multiple AAAs
Scheduled SSID Turn SSID ON/OFF on a daily/weekly/time of day basis
VLAN Dynamic VLAN assignment from RADIUS server.
VLAN per SSID per user, VLAN load balancing
Data Limiting Dynamic rate limiting of client traffic per SSID & per client
Subscriber QoS WMM
Client Isolation Yes
Controller-Less Fast Roaming Yes. 802.11r, Opportunistic Key Caching supports Enhanced roaming Disconnect for sticky clients
Airtime Fairness Yes
Meshing Multi-hop meshing supported (3)
ACS: Automatic Channel Selection Yes. Set at start or run periodically
NAT Yes
DHCP Server Yes
Firewall Yes. NAT logging
ACL, DNS-ACL Yes. L2, L3 or DNS based access control
Band Steering Band Balancing Yes
Airtime Fairness Yes
Tunneling
  • L2TP
  • L2oGRE
  • PPPoE
Tools
  • Packet capture
  • IP connectivity
  • Wi-Fi analyzer
  • Wireless Sniffer
  • Tech support (logs)
Services
  • NTP server config
  • Syslog servers
  • SNMP traps support
  • DNS proxy
  • cnPilot’s critical resource service awareness feature reacts to the health of an external Gateway or AAA and turns SSID ON/OFF
APIs Presence Locationing API
Certifications FCC, ETSI, CE
EN 60601-1-2 (Medical EMC)
UL2043 Plenum rated
cnMaestro Wi-Fi Controller
Cloud & On-Premises Available in the Cloud or as a downloadable VMware image (Onpremises)
Common Manager Manage both cnPilot and Cambium’s ePMP and PMP 450 radios
Troubleshooting Single screen wireless view, showing Wireless backhaul, Access point & clients
Frictionless On-Boarding Secure large scale bulk onboarding
Zero touch bulk configuration and provisioning
Device Inventory Inventory tracking and reporting
Monitoring Insightful status monitoring; rich visibility to device lifecycle
Alarms and events management – Critical/Major/Minor
Statistics graphs and table display
Alarm traffic light display
Key Stats Monitoring 7 day historic stats
Portal Hosting Setup Hotspot portals segmented by SSIDs
Voucher Time and Rate limited Guest access portals with Vouchers for 1,000 client devices
Social Login Facebook, Google
Site Grouping Group sets access points for convenient management
Client Insight Shows client history with aggregate client manufacturer views
Multiple Admins Multiple admin provisioning per account
Software Upgrade Ability to upgrade multiple WiFi devices at a time
Managed Services Managed Service Provider (MSP) for managed Enterprise networks
ACCESS POINT Overview
Cloud & On-Premises Available in the Cloud or as a downloadable VMware image (Onpremises)
Common Manager Manage both cnPilot and Cambium’s ePMP and PMP 450 radios
Troubleshooting Single screen wireless view, showing Wireless backhaul, Access point & clients
Frictionless On-Boarding Secure large scale bulk onboarding
Zero touch bulk configuration and provisioning
Device Inventory Inventory tracking and reporting
Monitoring Insightful status monitoring; rich visibility to device lifecycle
Alarms and events management – Critical/Major/Minor
Statistics graphs and table display
Alarm traffic light display
Key Stats Monitoring 7 day historic stats
Portal Hosting Setup Hotspot portals segmented by SSIDs
Voucher Time and Rate limited Guest access portals with Vouchers for 1,000 client devices
Social Login Facebook, Google
Site Grouping Group sets access points for convenient management
Client Insight Shows client history with aggregate client manufacturer views
Multiple Admins Multiple admin provisioning per account
Software Upgrade Ability to upgrade multiple WiFi devices at a time
Managed Services Managed Service Provider (MSP) for managed Enterprise networks
