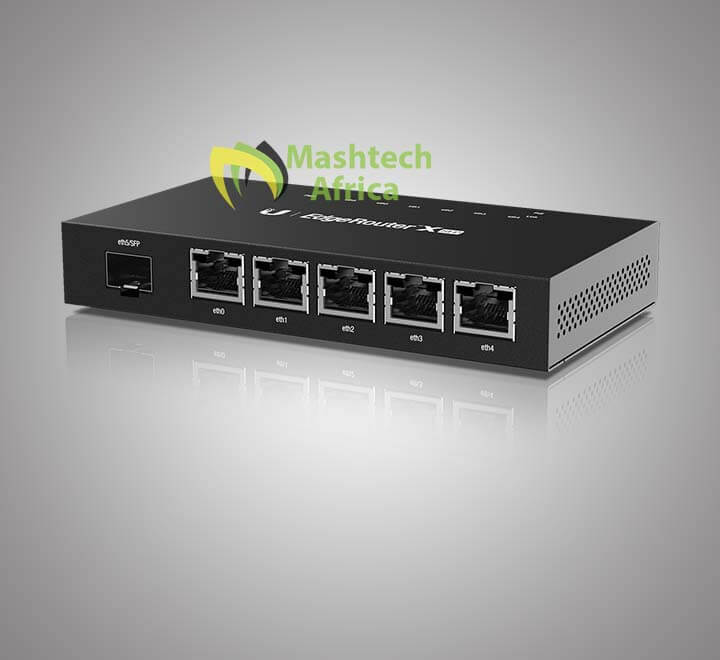

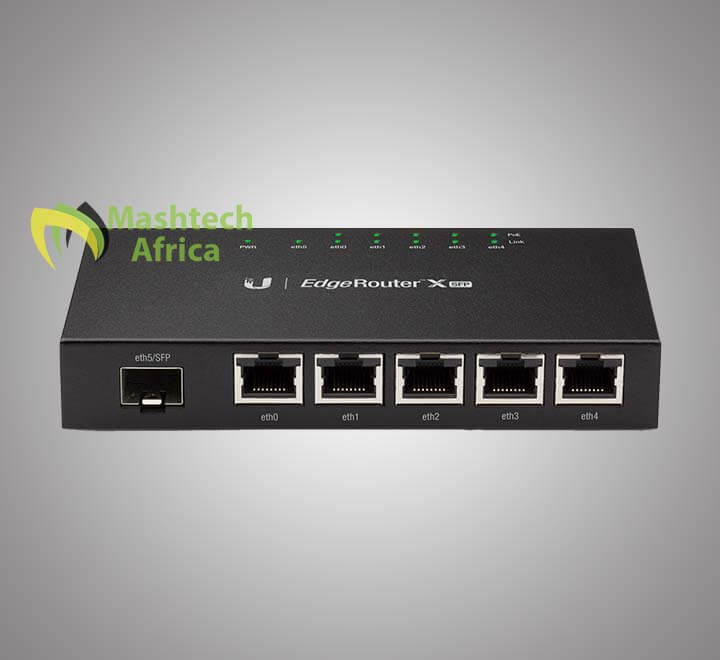

Ubiquiti EdgeRouter X SFP ER-X-SFP

Availability:

7 in stock


  • Advanced Gigabit Router with PoE and SFP
  • The EdgeRouter™ X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.
  • The Ubiquiti EdgeRouter X SFP is the newest member of the EdgeMAX platform. The EdgeRouterX SFP combines carrier-class reliability with excellent price-to-performance value in an ultra-compact form factor.

SKU: ER-X-SFP

KSh 9,999.00 KSh 11,000.00

7 in stock

Ubiquiti EdgeRouter X SFP combines carrier-class reliability with enterprise-level features in a compact and affordable unit. Available in a rack-mountable form factor with eight functional ports, the EdgeRouter Pro and 8-Port EdgeRouter models are capable of routing up to 2 million+ packets per second. Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

The ER-X-SFP is powered by an external power adapter. The five Gigabit RJ45 ports support 24V passive PoE output for AirMax or UniFi devices, while its SFP port provides fiber connectivity to support backhaul applications. The ER-X-SFP provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.

Package Contents

  • 1x Power Supply
  • 1x Ubiquiti EdgeRouter X SFP
  • 1x UK Mains Cable

Product Features

  • Gigabit SFP port for backhaul applications
  • Versatile PoE capability
  • Compact form factor
  • 5 Gigabit RJ45 ports with passive PoE support
  • 1 Gigabit SFP port for backhaul applications
  • Ports configurable for line-rate, Layer-2 switching
  • 130 kpps for 64-byte packets
  • 1 Gbps for 1518-byte packets

SPECIFICATION

Memory 256 MB DDR3 RAM Code Storage 256 MB NAND
Dimensions 142 x 75 x 23 mm (5.59 x 2.95 x 0.91″)
Power Supply (PoE) Passive 24V (Pins 4, 5+; 7, 😎
Interfaces (5) 10/100/1000 RJ45 Port, (1) 100/1000 SFP Port
Mounting Wall-Mount
Operating Temperature -10 to 45° C (14 to 113° F)
Default IP 192.168.1.1
Default name ubnt
Default password ubnt

Check out more info about ER-X-SFP

SKU: ER-X-SFP Category: Tags: , ,

Model Comparison

ER-X
ER-X
ER-X-SFP
ER-X-SFP
Gigabit RJ45 Ports 5 5
SFP Ports N/A 1
PoE Input 24V Passive PoE N/A
PoE Output Passive PoE Passthrough* 24V Passive PoE
