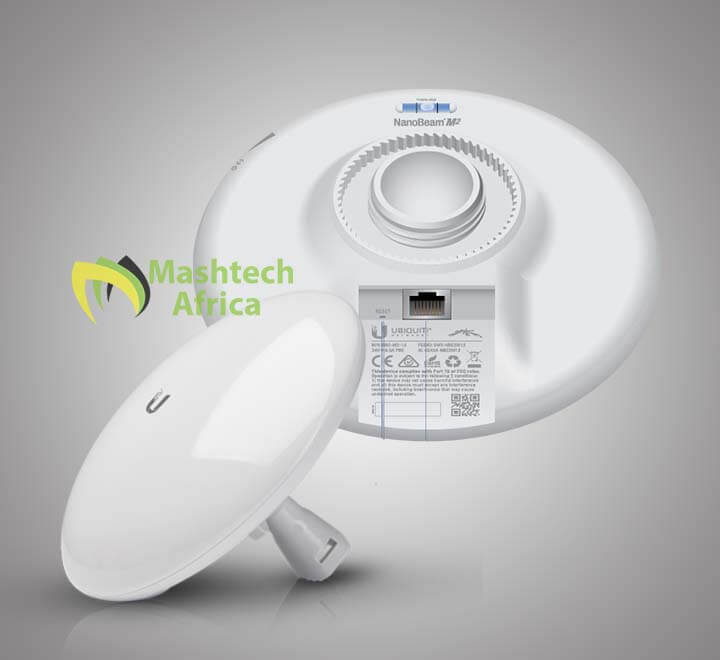

Ubiquiti NanoBeam M2 2.4GHz 13dBi Radio and Antenna NBE-M2-13

Ubiquiti Networks
Availability:

8 in stock


  • High-Performance airMAX® Bridge
  • Incorporating innovative industrial design with advanced technology, the NanoBeam®M is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
  • the new Ubiquiti NanoBeam M2 13dBi has a compact design with uniform beam width, efficient footprint and a faster processor. The NanoBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design. The Ubiquiti NanoBeam directs RF energy into a tighter beamwidth resulting with the focus in one direction so the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

SKU: NBE-M2-13

KSh 20,298.00 for 3 item(s)

This model of the NanoBeam (NBE-2G-13) features the All-in-One Design. The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint. By providing increased performance with its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy.

Package Contents

  • 1x Lock Ring
  • 1x Ball Joint Mount
  • 1x EU Mains Cable
  • 1x PoE Injector
  • 1x NanoBeamM2′
  • 1x Mounting Strap
  • 1x UK Mains Cable

Product Features

  • Uniform Beamwidth Improves Noise Immunity
  • 560 MHz Processor
  • Easy Assembly and Installation

Check out more info about NanoBeam NBE-M2-13

Brands

Ubiquiti Networks

Product Specifications

System

Extras GPS Antenna and Reset Button
LEDs Power, LAN and WAN
Processor Name Atheros
Operating System AirOS
Storage Type Flash
Processor Speed 560 MHz
Storage 8 MB
Processor Cores 1
Processor Architecture MIPS 74K
Memory 64 MB
Memory Type DDR2

Networking

10/100 PoE In 1

Wireless

Channel Width 30, 20, 40, 8, 5 and 10 MHz
Transmit Power 630 mW
VSWR 1.7:1
Rx Sensitivity -94 dBm
Gain 13 dBi
Antenna Type Dish
Frequency Max 2475 MHz
Band 2.4 GHz
Wireless Standards 802.11g/n
Frequency Min 2405 MHz

Power Input

PoE Max 24 V
PoE Min 24 V
PoE Ports 1
PoE Type Passive
PoE Pins 4/5(+),7/8(-)
Power Consumption 6 W
Current Min 0.5 A

Physical

Mounting Wall
Case Material Plastic
Dimensions 189 x 189 x 125 mm
Weight 530 g

Environmental

Operating Humidity Min 5 % RH
Operating Temperature -40 to 80 °c
ESD/EMP Protection ± 24kV Air / Contact
Shock and Vibration IEC 68-2-6
Wind Loading 45.4N @ 200km/h N @ Km‾h
Operating Humidity Type NonCondensing
Operating Humidity Max 95 % RH
UV Resistant Yes

Compliance

RoHS Yes
Certifications RCM, FCC, IC, and CE

Model Comparison

NBE-M2-13
NBE-M5-16
NBE-M5-19
NBE-5AC-16
NBE-5AC-Gen2
Frequency 2.4 GHz 5 GHz 5 GHz 5 GHz 5 Ghz
Throughput 150+ Mbps 150+ Mbps 150+ Mbps 450+ Mbps 450+ Mbps
Range 15+ km 10+ km 15+ km 10+ km 15+ km
Improved Wide Bandwidth Antenna
Management Radio
